"Smoke" maker, dia.30mm, files

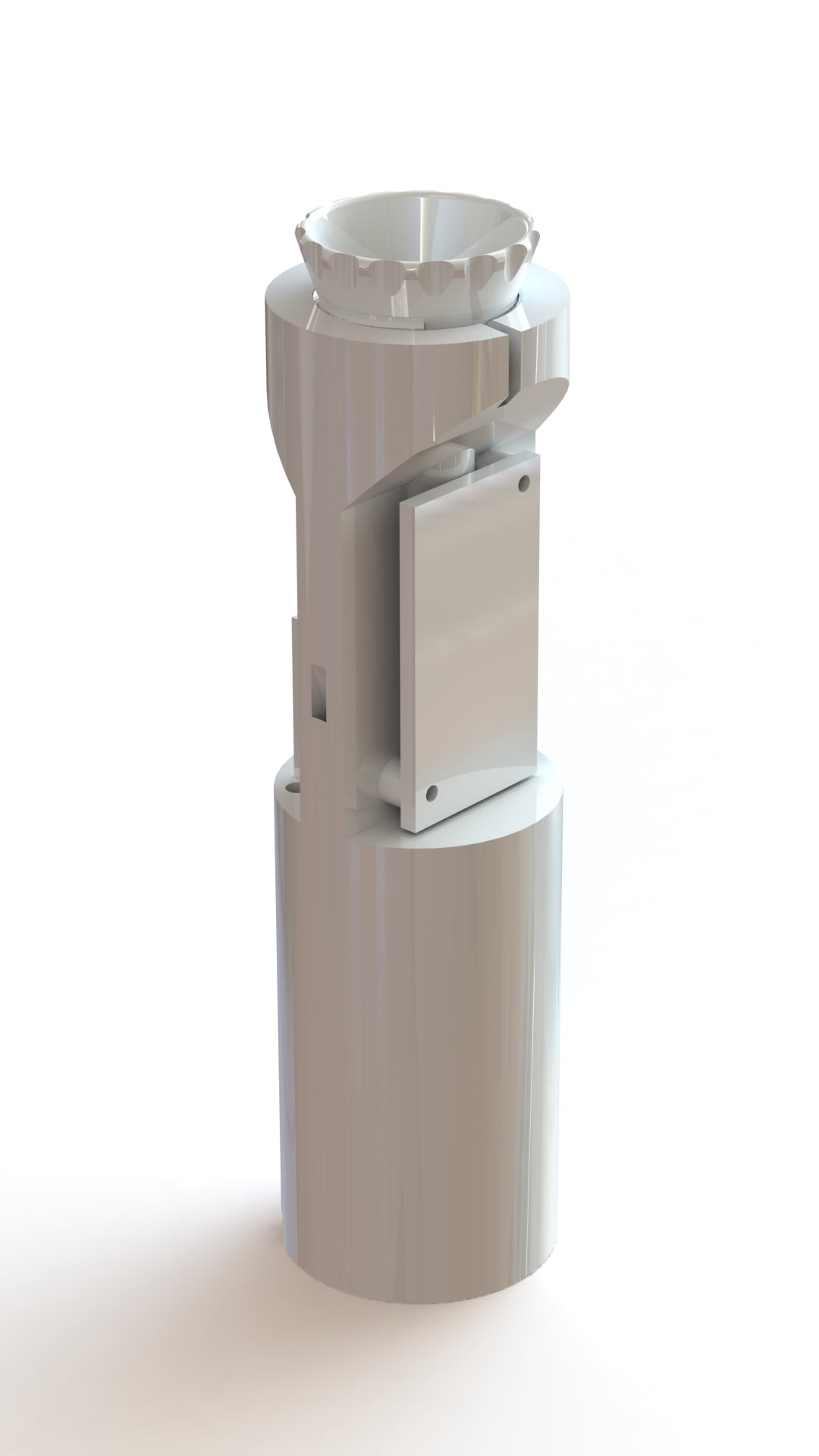

These files are intended for 3D printing a smoke simulator based on an ultrasonic humidifier module. The simulator housing is available in three versions, designed for swab of 100, 120, and 150 mm in length. Depending on the version, the tank holds approximately 25, 35, or 50 ml of water. With a 25 ml of water, the module runs for about 30 minutes.

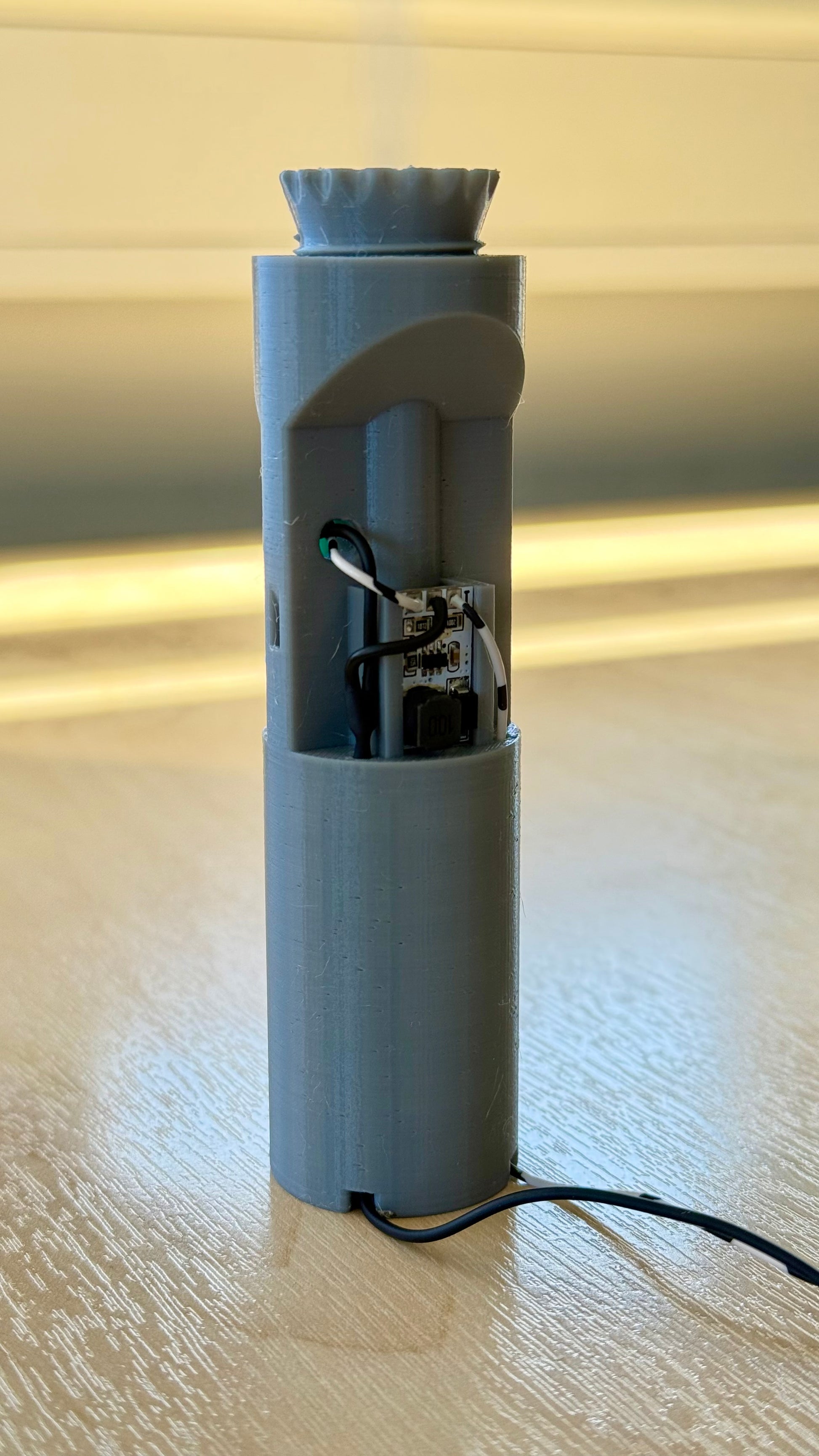

The device is intended for installation inside the funnel. The distance from the top of the funnel to the plate must not exceed 50 mm. The internal diameter of your model’s funnel must be no less than 32 mm.

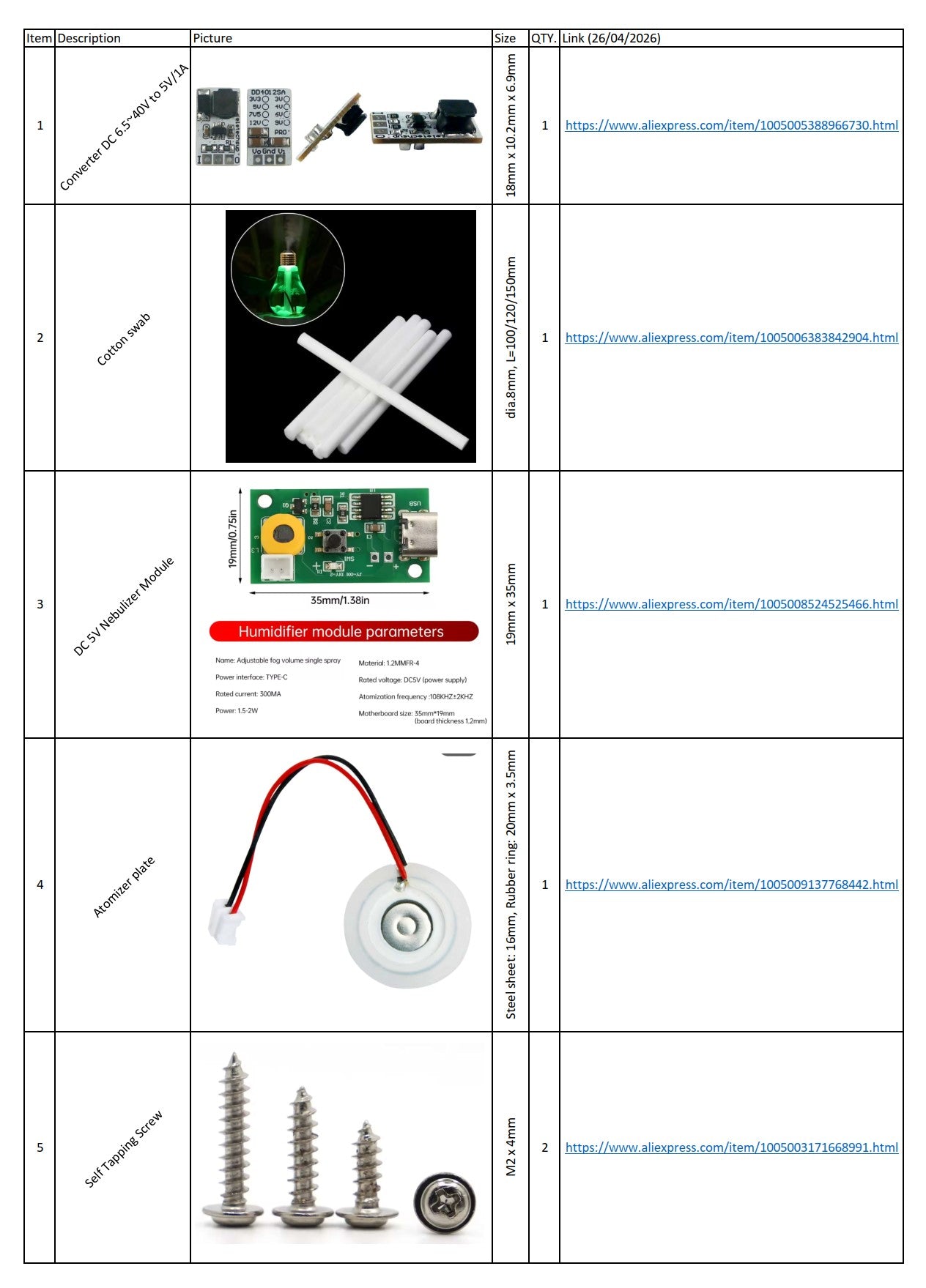

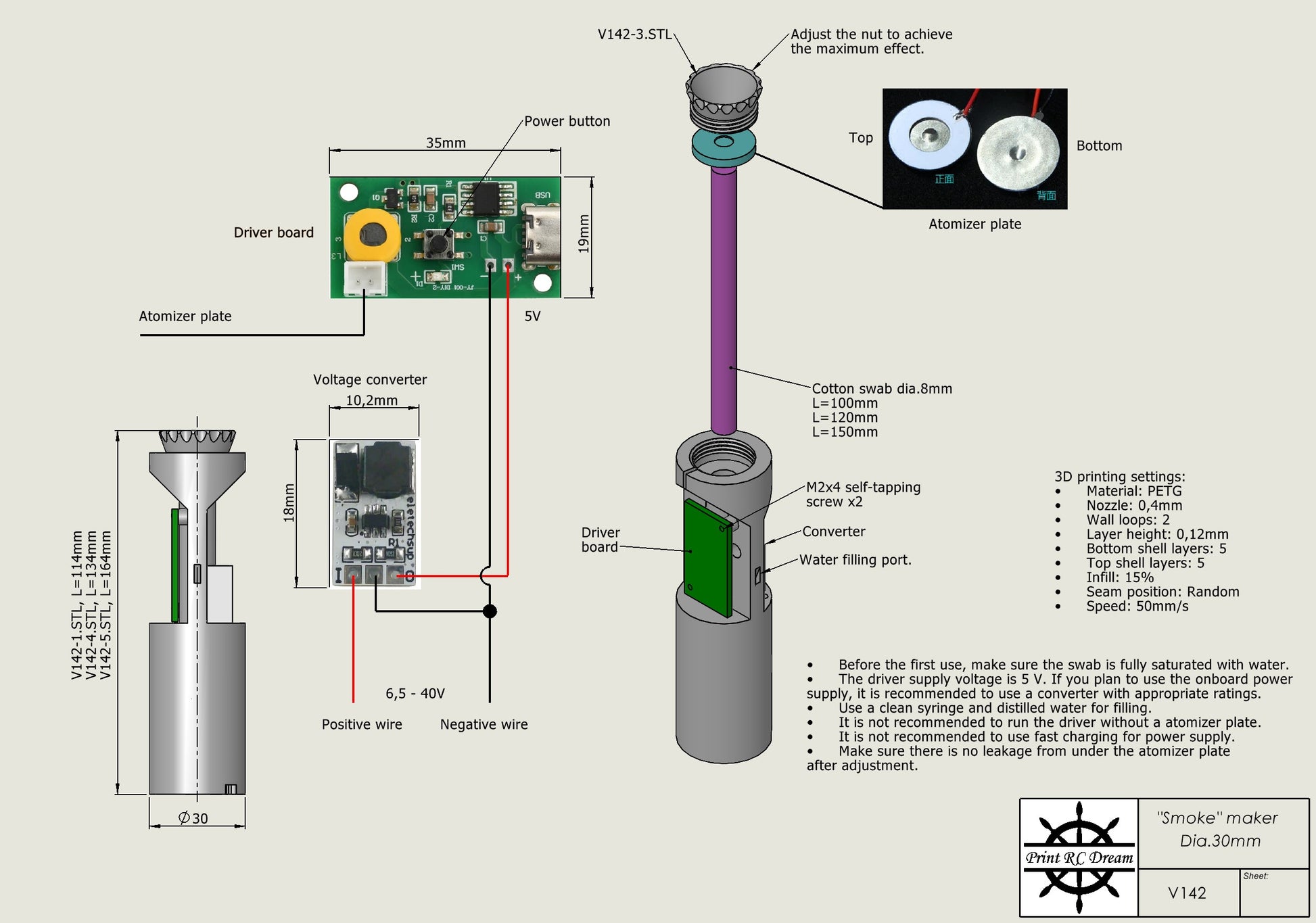

A list of purchased components and the assembly instructions can be found on our website in the documentation section. To avoid leaks, we strongly recommend using the print settings specified in the instructions. The model is optimized for FDM printing without supports.
